importing TF2 characters into blender with skins

In this tutorial I will teach you how to import TF2 characters/items into blender with their skins

In this tutorial I will teach you how to import TF2 characters/items into blender with their skins

  1. download the nessacery programs:
  2. extract the model of the character/item you are importing
    • open GCFScape
    • click file > open and go into steam > steamApps > common > team fortress 2 > tf > tf2_misc_dir.vpk
    • open root > models > player and then all the files of the class you want (including in any of the subfolders)
    • bats are then in the item folder and weapons are in tf > models > weapons
    • extract them to a folder some where that you can edit again
  3. extract the skins for the model

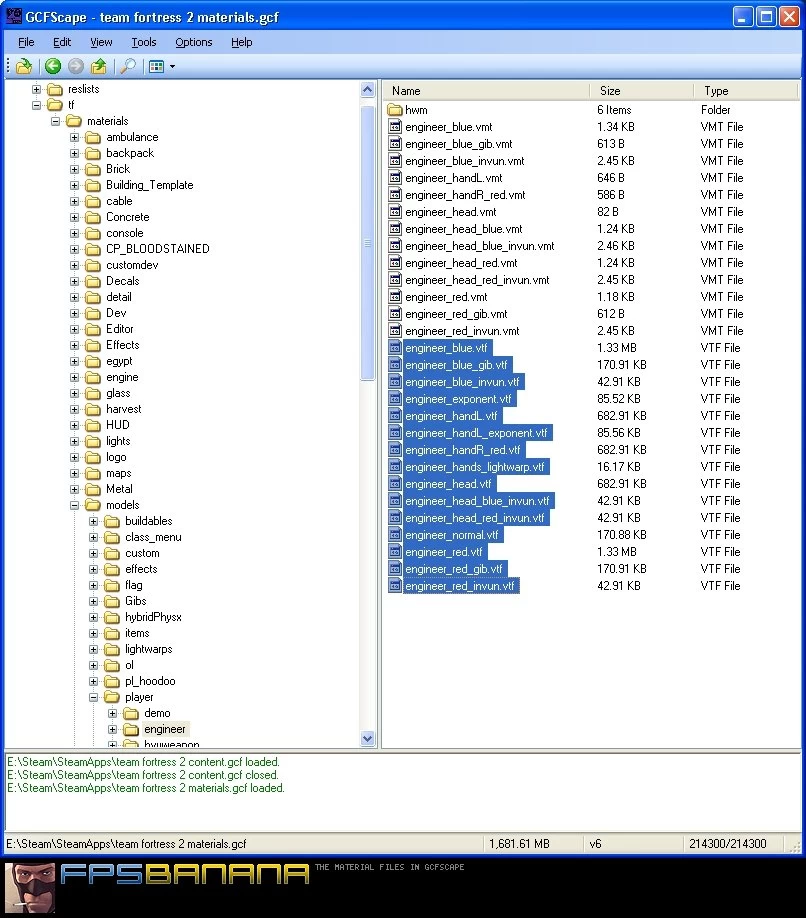

    • still in GCFScape open tf2_textures_dir.vpk (this is in the same folder)
    • go into root > materials > models and then the same path name as the models were in
    • sort the folder by file type and extract all the vtf files
  4. making the model usable
    • open the mdl file you extracted (not the animation file) in Notepad++
    • if you do not want the materials skip to step 7 and select import mesh rather than Import Mesh with textures
    • delete the phrase "models/player/" or whatever the file path in the VPK was there will be multiple (more if it is heavy, less if pyro)
    • save the file
  5. making the skins usable
    • open VTFEdit
    • find the skins you extracted form GCFScape
    • export all the vtf files that do not contain the words "blue" "invun" or "gib" or are blue or green in the preview as tga files
    • load a program that can edit tga files and create a white square 512 x 512 name it eyeball_l.tga and save it is the folder
    • copy the file and rename it eyeball_r.tga
  6. decompile the model
    • open MDLdecompiler
    • uncheck all the boxes
    • load the mdl into the first box
    • enter the target into the second box
    • click extract
  7. importing the file into blender (finally.)
    • open blender
    • delete the default box
    • goto file > import > Half-Life 2 (.SMD)
    • click Static Mesh With textures
    • open lod1_[class]_morphs_low.dmx.smd
    • if any errors come up it is due to a missing file, if it is not in the VTFEdit file find the closest file and copy and rename it the necessary file if not are close use a white bmp file and import again
    • select the bones press r the x then 90
You should now have a textured TF2 character if you have I don't know why (sorry.)
