Normal mapping - Height maps (GIMP)

Attention Gamer! We are one of the oldest mod sites on the Interwebs. Sign up and maximize your browsing experience.

  • Subscribe: Get notified of new submissions like this.
  • Say Thanks: Show your appreciation by sending youthfive points.
  • Post: Give youthfive your thoughts on this Tutorial.
  • Vote: Help youthfive win the Monthly Awards.
  • Rate: Give this Tutorial a rating out of 10.
  • Flag: Alert moderators and warn members of a problem with this Tutorial.
  • Watch: Get notified when this Tutorial is updated.
Mascot

Resistance is futile...

Become a Bananite

Already a Bananite? Login

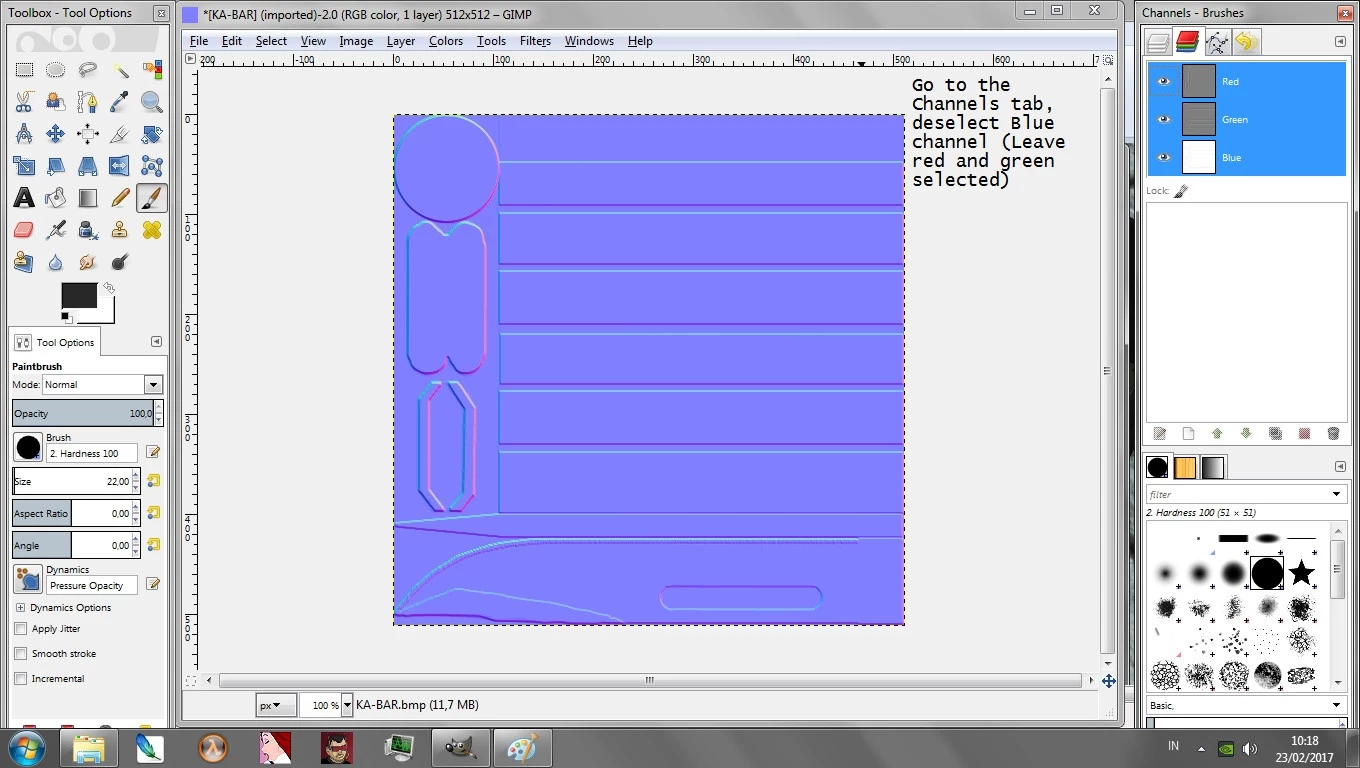

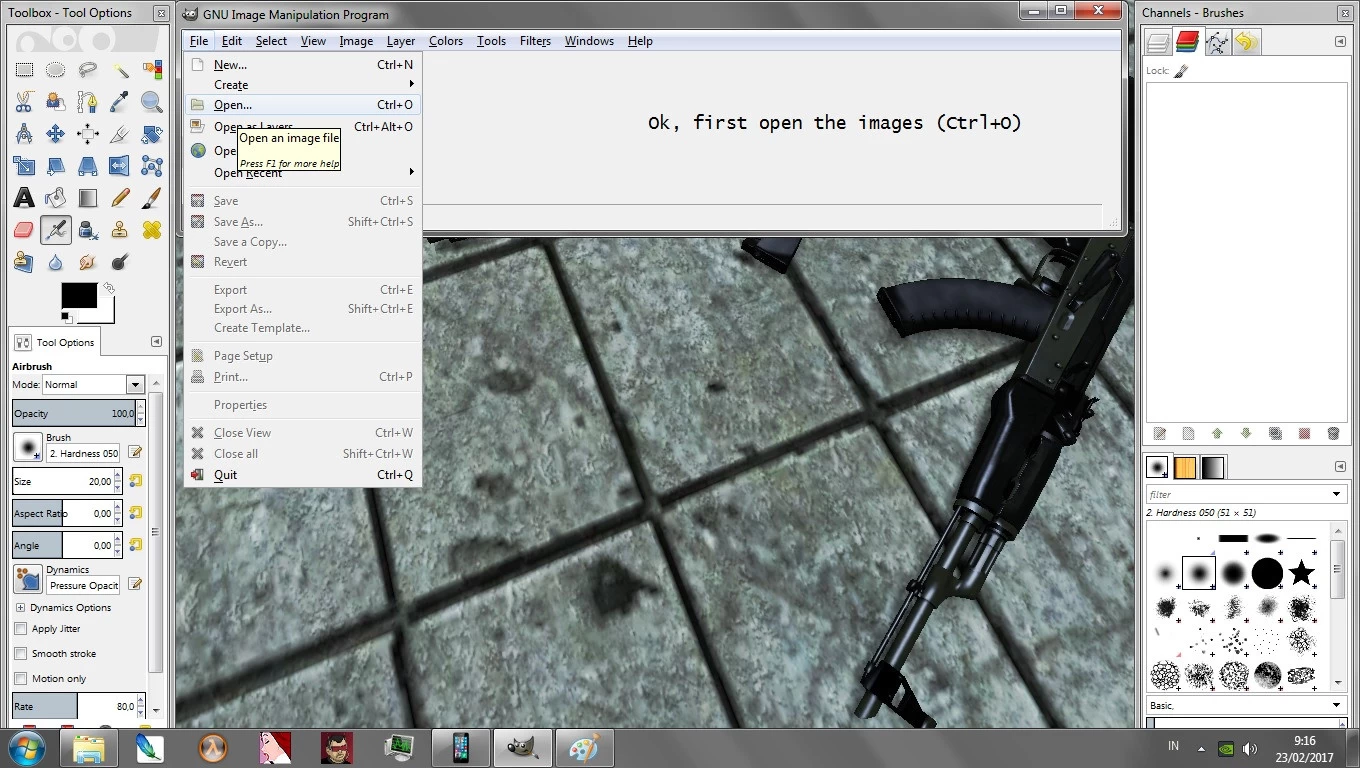

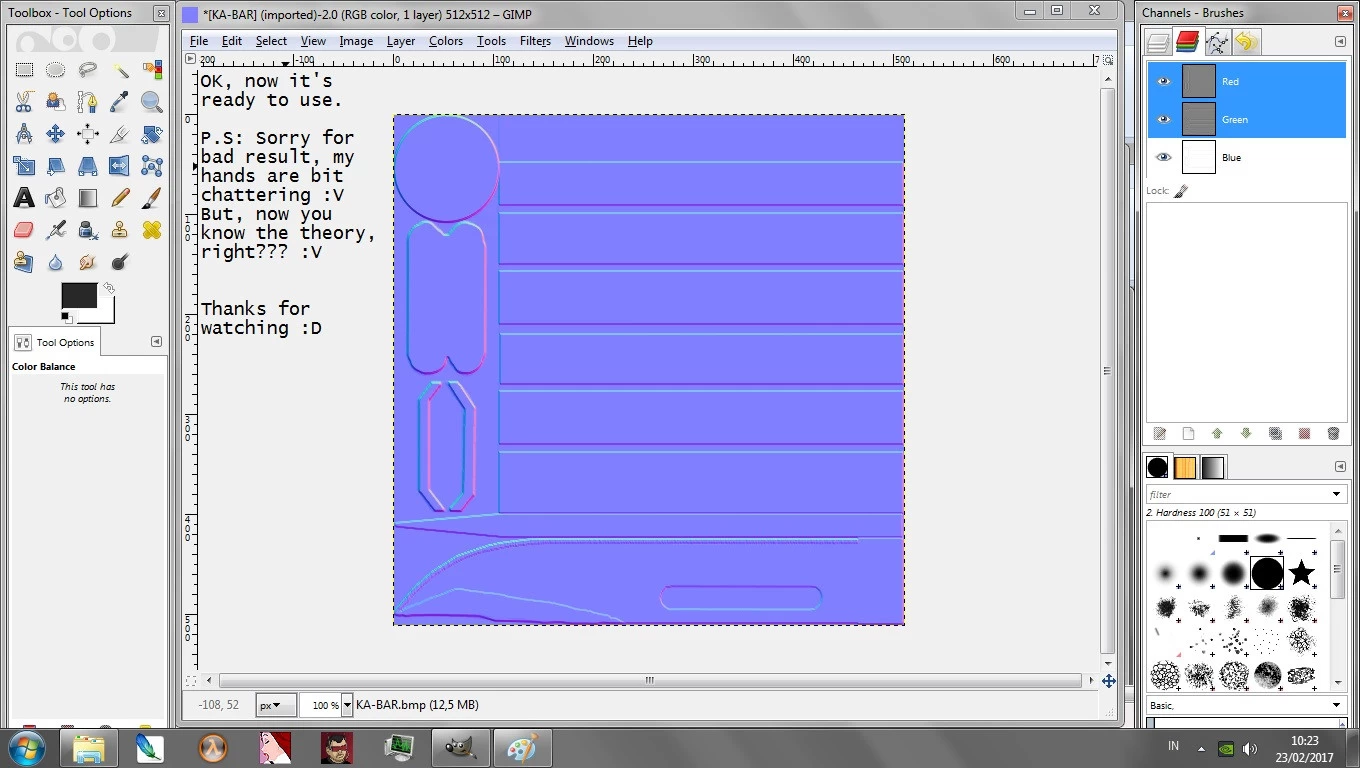

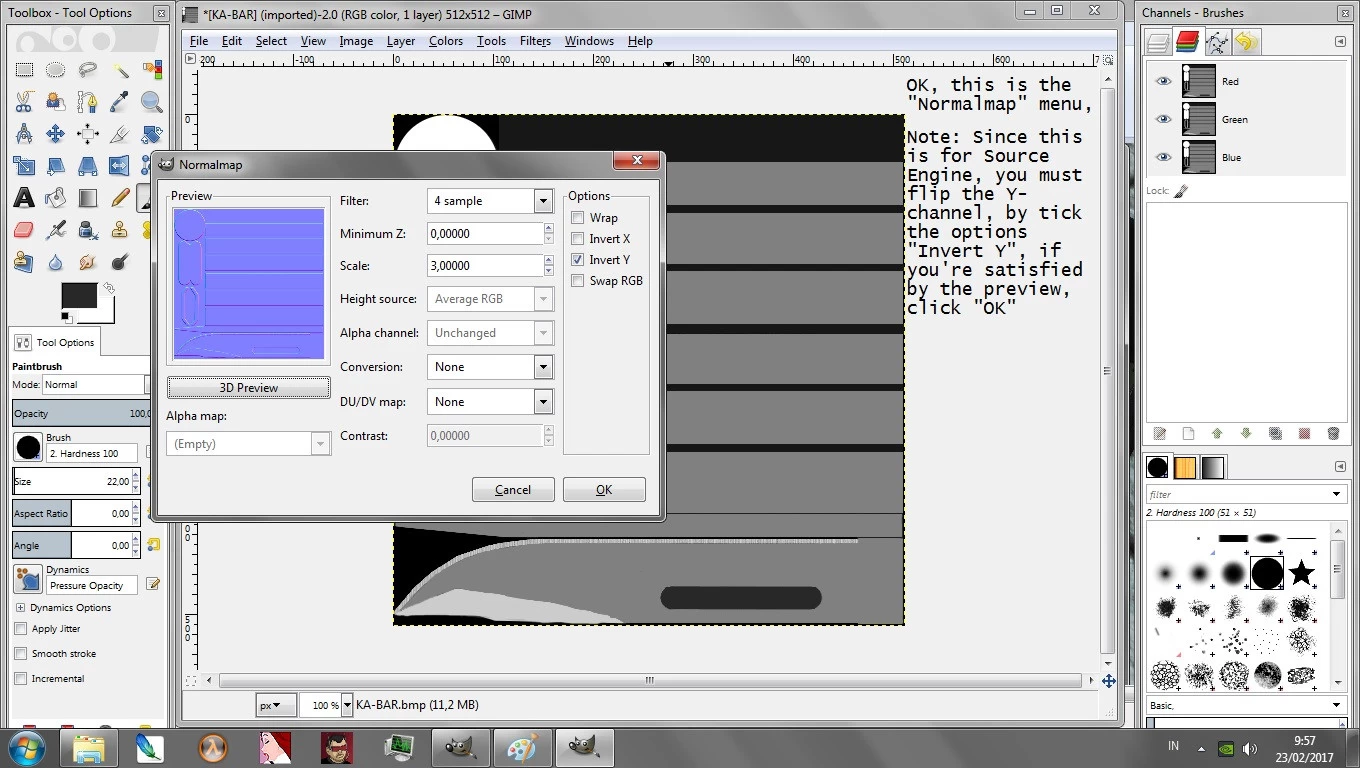

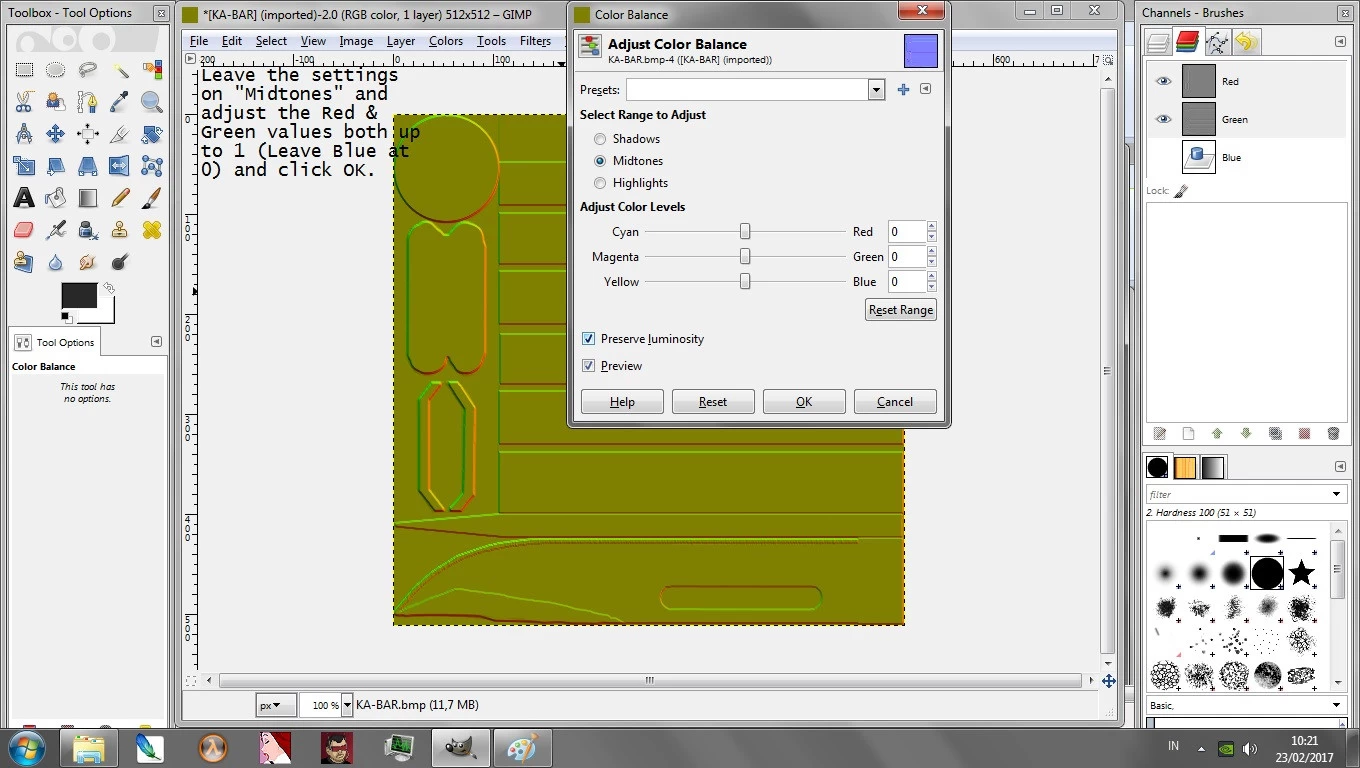

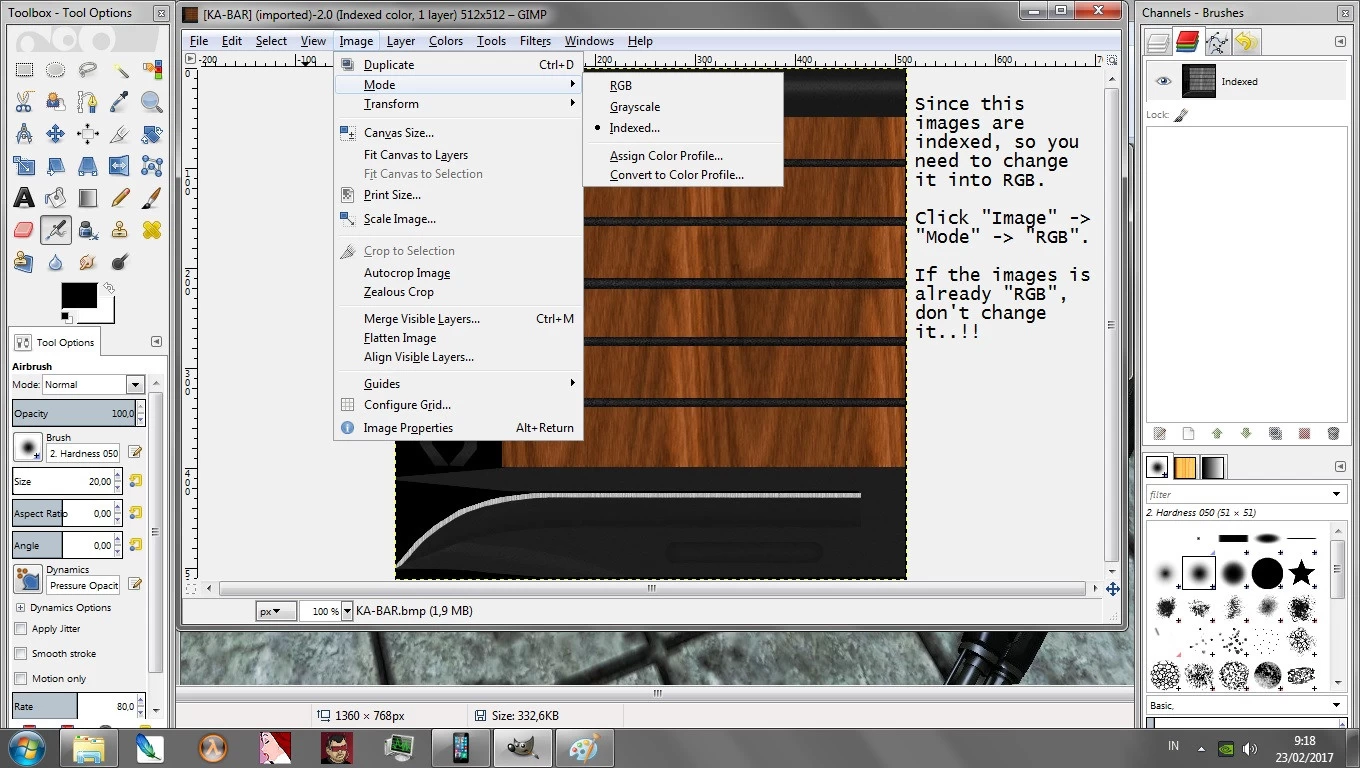

Ok guys, this is actually a similiar tuts, previously created by Rafael de Jongh, but this time I'll use GIMP, it's free to use & hopefully it will help you, especially for GIMP user :)

Tools:
- GIMP (of course)
- GIMP normal map plugin

Sorry for some grammar mistake :P

P.S: Similiar tutorial on PhotoShop
